Overview

The 1000 Series Angle Blade is sized for compact tractors and skid steers, up to 3,000 lbs. operating weight. Featuring manual or hydraulic angle, this blade is ideal for homeowner driveways.

Image of H L A swoop icon

2000

Image of H L A swoop icon

3000

Image of H L A swoop icon

4000

Image of H L A swoop icon

5000

Image of H L A swoop icon

6000

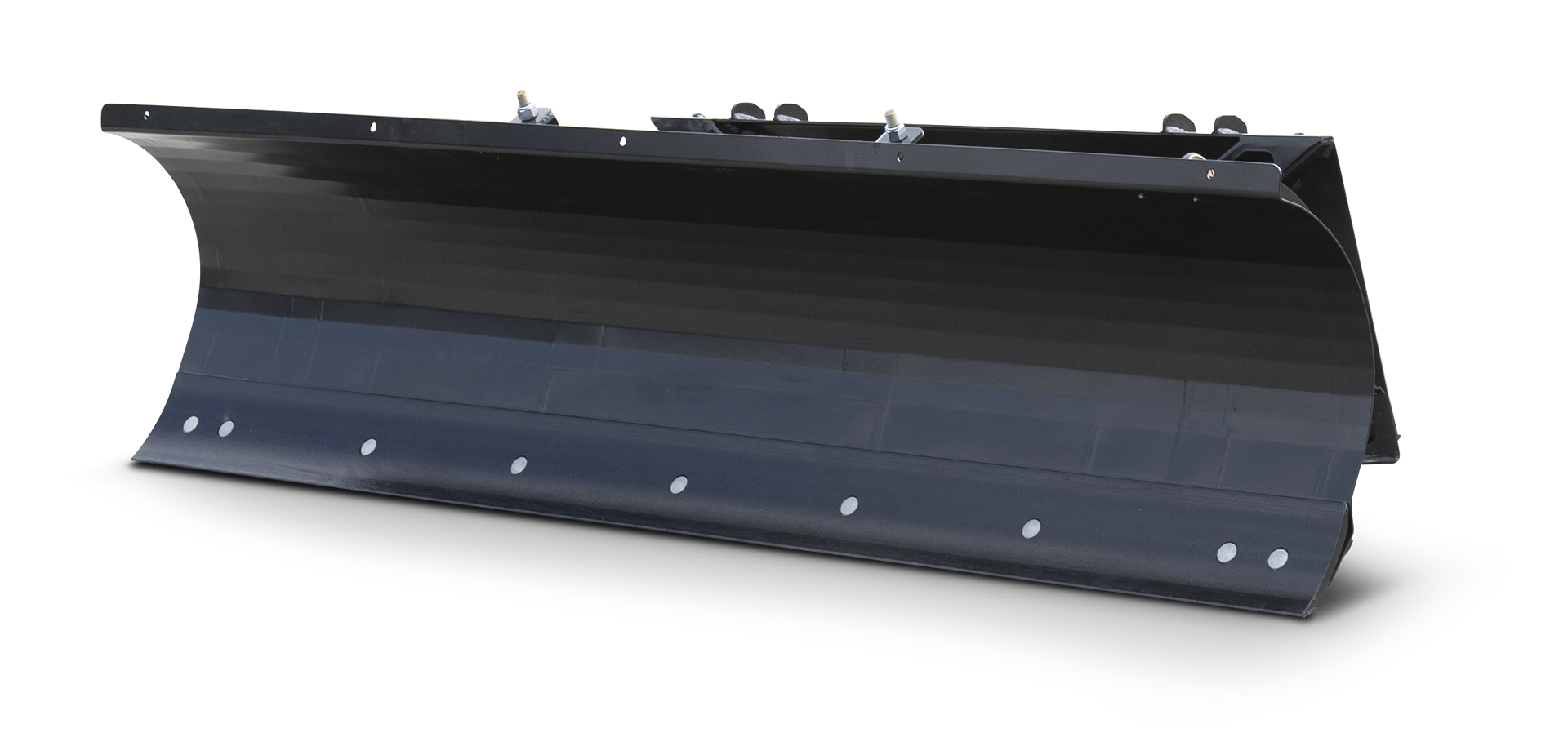

1000 SnowBlade

The 1000 Series Angle Blade is sized for compact tractors and skid steers, up to 3,000 lbs. operating weight. Featuring manual or hydraulic angle, this blade is ideal for homeowner driveways.

Specifications

Part # Cutting Edge Approx. Weight (LBS.) Length (in.) Overall Road Width (Angled) (in.) Snow Clearing Width (Angled) (in.) Mouldboard Height Max Operating Weight (LBS.)
SB100048 Steel 365 48 44.5 40 20" 3,000
SB1000R48 Rubber 365 48 44.5 40 20" 3,000
SB100054 Steel 375 54 50 45 20" 3,000
SB1000R54 Rubber 375 54 50 45 20" 3,000
SB100060 Steel 385 60 56 50 20" 3,000
SB1000R60 Rubber 385 60 56 50 20" 3,000
SB100066 Steel 400 66 59.5 55 20" 3,000
SB1000R66 Rubber 400 66 59.5 55 20" 3,000
SB100072 Steel 410 72 65.5 60 20" 3,000
SB1000R72 Rubber 410 72 65.5 60 20" 3,000
SB100078 Steel 420 78 69.5 65 20" 3,000
SB1000R78 Rubber 420 78 69.5 65 20" 3,000
SB100084 Steel 440 84 74.5 70 20" 3,000
SB1000R84 Rubber 440 84 74.5 70 20" 3,000
SB100090 Steel 450 90 79.5 75 20" 3,000
SB1000R90 Rubber 450 90 79.5 75 20" 3,000
SB100096 Steel 465 96 84.5 80 20" 3,000
SB1000R96 Rubber 465 96 84.5 80 20" 3,000

Features

More +
  • Lateral Float Feature

    Lateral Float

    Oscillating Mount Feature Video Link

    Allows blade to follow ground contours for better clearing performance.

  • Mouldboard Profile Feature

    Mouldboard Profile

    Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.

  • Replaceable, Reversible Cutting Edge Feature

    Replaceable, Reversible Cutting Edge

    Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.

  • Adjustable Skid Shoes Feature

    Adjustable Skid Shoes

    Allows you to set cutting depth for optimum performance and prolonged cutting edge life.

  • Spring Trip Mouldboard Feature

    Spring Trip Mouldboard

    Allows blade to trip back if struck by hidden object limiting damage.

  • 35° Manual Angle Either Direction (hydraulic optional) Feature

    35° Manual Angle Either Direction (hydraulic optional)
