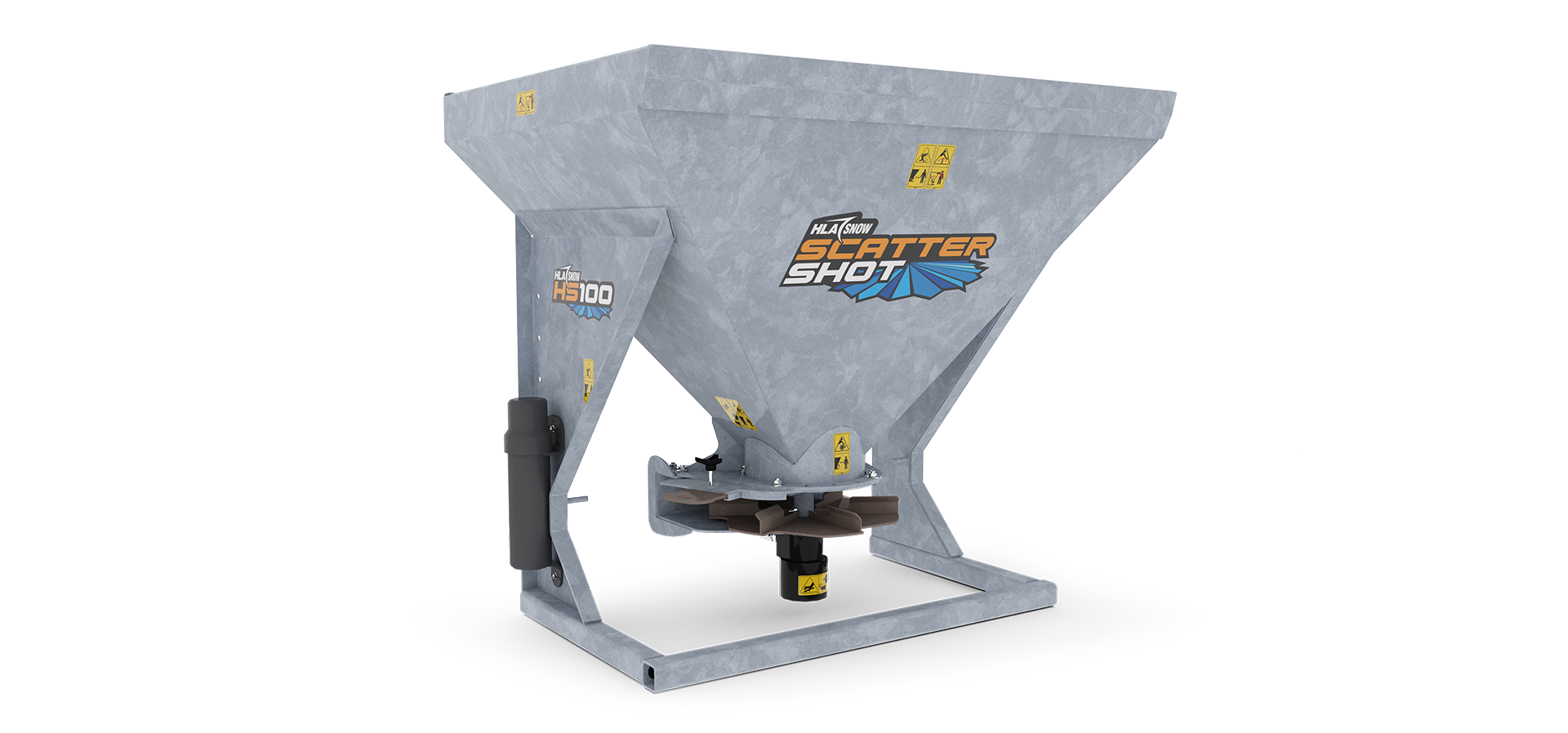

HS100

Specifications

Model Self Loading Capacity Spread Width Width Height Depth Weight (lbs.) Hydraulic
(2000-3000 PSI)
HS100
Skidsteer/Loader
Yes 1/2 cu yd 3'-40' 48" 44" 36" 445 5-20 GPM
HS1003PHC1
Hydraulic Drive, CAT 1 3PH
No 1/2 cu yd 3'-40' 48" 44" 36" 410 5-20 GPM
HS100PTO3PHC1
PTO Drive, CAT 1 3PH
No 1/2 cu yd 3'-40' 48" 44" 36" 420 N/A
HS100H3PHC1 *
Hydraulic Drive, CAT 1 3PH, Hydraulic Tilt
Yes 1/2 cu yd 3'-40' 48" 44" 36" 505 5-20 GPM

Features

More +
  • Hydraulic Spinners Feature

    Hydraulic Spinners

    Hydraulically controlled, the spinners spread the material from the hopper.

  • Spinner Speed Control Feature

    Spinner Speed Control

    The speed control adjusts the speed of the hydraulic spinners, affecting the broadcast distance to suit your needs.

  • Manual Flow Rate Adjustment Slider Feature

    Manual Flow Rate Adjustment Slider

    These sliders allow for the manual adjustment of material flowing from the hopper.

  • Floating Agitator Feature

    Floating Agitator

    The floating agitators reduce bridging, ensuring that a consistent flow of material is broadcasted.

  • 13" Quick Attach Spacer Included with Skid Steer Feature

    13" Quick Attach Spacer Included with Skid Steer

    The 13" Quick Attach Spacer included with Skid Steer Kit increases the amount of space between the skid loader and the ScatterShot allowing the operator to easily get in and out of the skid loader while the ScatterShot is still attached.

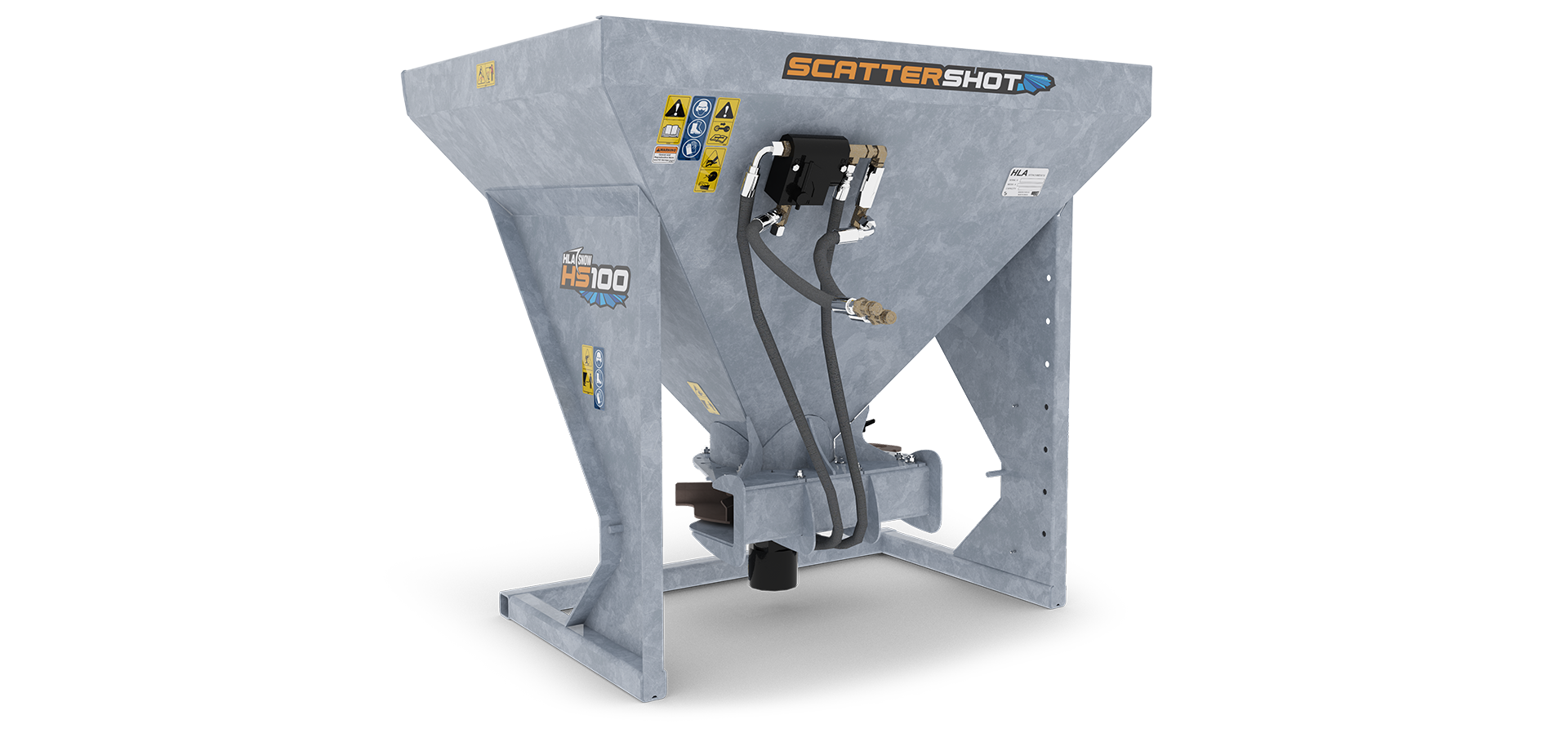

  • Includes Hydraulic Hoses and Couplers Feature

    Includes Hydraulic Hoses and Couplers
