Overview

The 2000 Series Angle Blade is sized for compact tractors and skid steers, from 2,500 to 5,000 lbs. operating weight. Featuring hydraulic angle, this blade is ideal for homeowner driveways and commercial sidewalks.

Image of H L A swoop icon

3000
Image of H L A swoop icon

4000
Image of H L A swoop icon

5000
Image of H L A swoop icon

6000

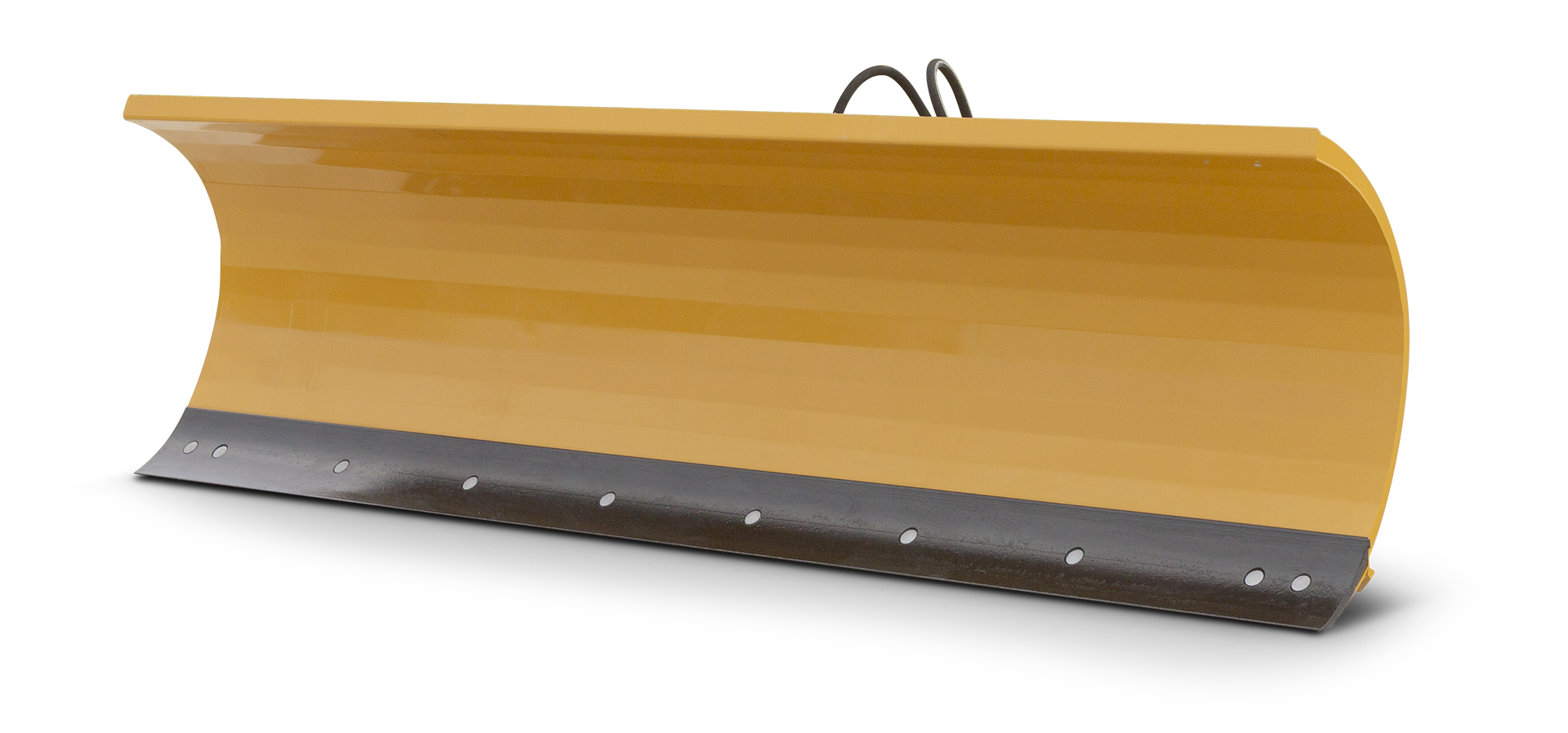

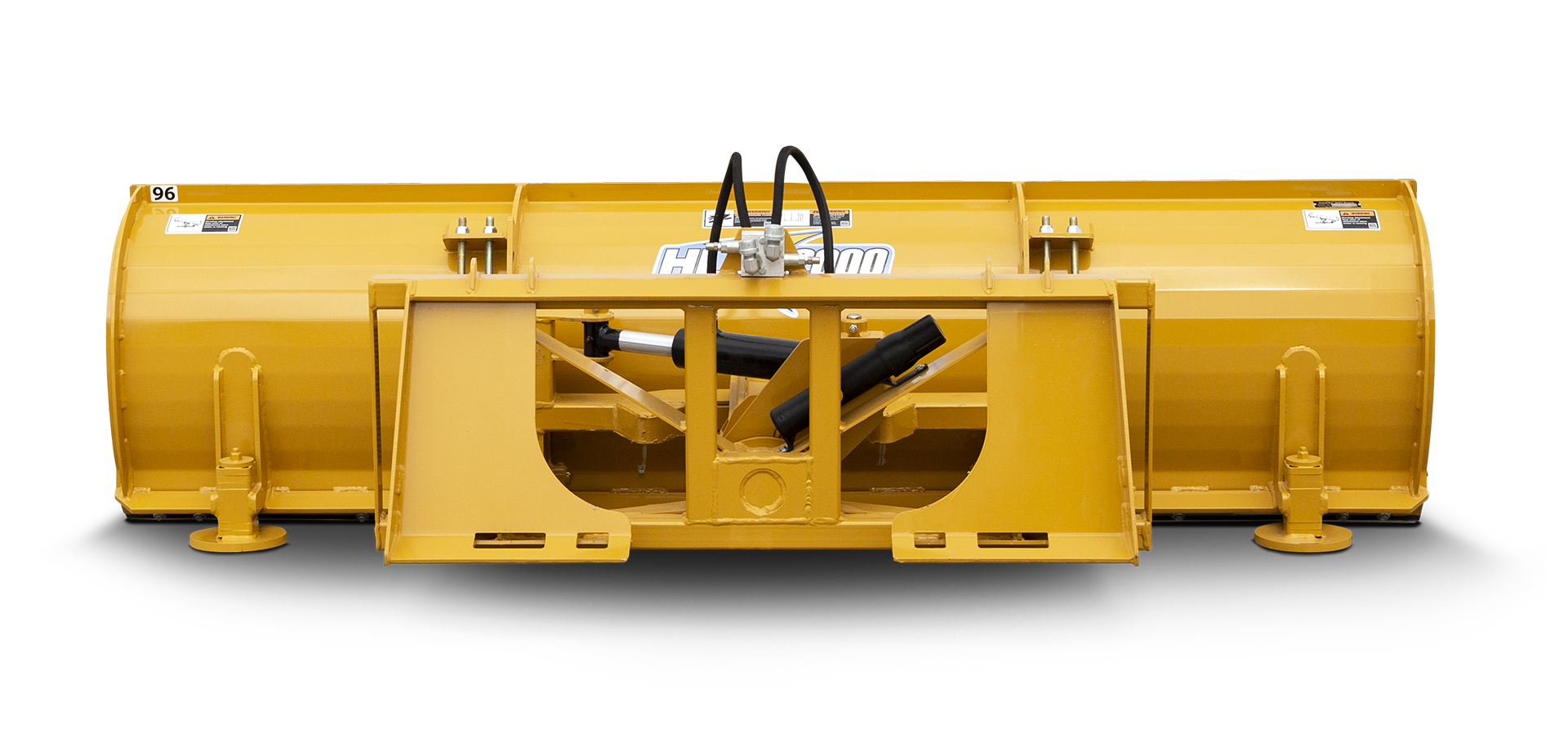

2000 SnowBlade

The 2000 Series Angle Blade is sized for compact tractors and skid steers, from 2,500 to 5,000 lbs. operating weight. Featuring hydraulic angle, this blade is ideal for homeowner driveways and commercial sidewalks.

Specifications

Part # Cutting Edge Approx. Weight (LBS.) Length (in.) Overall Road Width (Angled) (in.) Snow Clearing Width (Angled) (in.) Mouldboard Height Max Operating Weight (LBS.)
SB200060 Steel 550 60 55 49 24" 5,000
SB2000R60 Rubber 550 60 55 49 24" 5,000
SB200072 Steel 575 72 65 59 24" 5,000
SB2000R72 Rubber 575 72 65 59 24" 5,000
SB200078 Steel 595 78 70 64 24" 5,000
SB2000R78 Rubber 595 78 70 64 24" 5,000
SB200084 Steel 610 84 75 69 24" 5,000
SB2000R84 Rubber 610 84 75 69 24" 5,000
SB200090 Steel 620 90 80 74 24" 5,000
SB2000R90 Rubber 620 90 80 74 24" 5,000
SB200096 Steel 635 96 85 79 24" 5,000
SB2000R96 Rubber 635 96 85 79 24" 5,000

Features

More +
  • Lateral Float Feature

    Lateral Float

    Oscillating Mount Feature Video Link

    Allows blade to follow ground contours for better clearing performance.

  • Mouldboard Profile Feature

    Mouldboard Profile

    Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.

  • Replaceable, Reversible Cutting Edge Feature

    Replaceable, Reversible Cutting Edge

    Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.

  • Adjustable Skid Shoes Feature

    Adjustable Skid Shoes

    Allows you to set cutting depth for optimum performance and prolonged cutting edge life.

  • Spring Trip Mouldboard Feature

    Spring Trip Mouldboard

    Allows blade to trip back if struck by hidden object limiting damage.

  • 35° Angle with Crossover Relief Valve Protection Feature

    35° Angle with Crossover Relief Valve Protection

    Relief Valve Feature Video Link

    Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.
